Aluminum Profile (Separator) LED GAMMA 10 by 2K-Trade

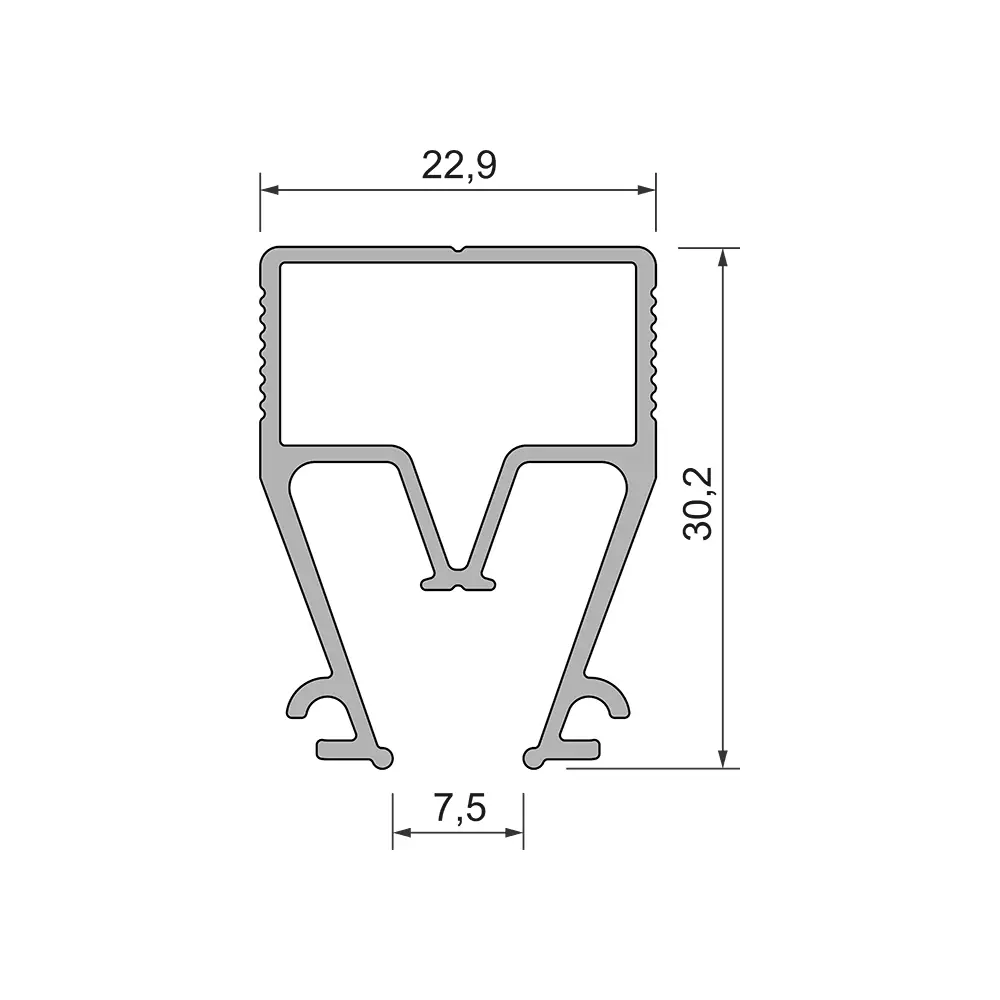

GAMMA 10 is the narrowest LED strip profile in the GAMMA series by 2K-Trade, designed for stretch ceilings. It is typically used as a separator between two membrane panels, but it can also accommodate a 5 mm wide COB LED strip. Although this configuration is rare, it provides an exceptionally subtle light line (approx. 7–8 mm wide). The profile is available in raw aluminum (silver) and powder-coated finishes: black (RAL-9005) or white (RAL-9016).
In practice, GAMMA 10 is chosen when a large ceiling needs to be divided into smaller zones or when a minimal gap between two membranes is required. Due to the narrow clearance, the LEDs are positioned very close together, which demands precise installation.
Features of the GAMMA 10 Profile
- ✅ Narrowest LED profile in the series (approx. 7–8 mm light width)
- ✅ Primarily used as a separator, occasionally with 5 mm COB tape

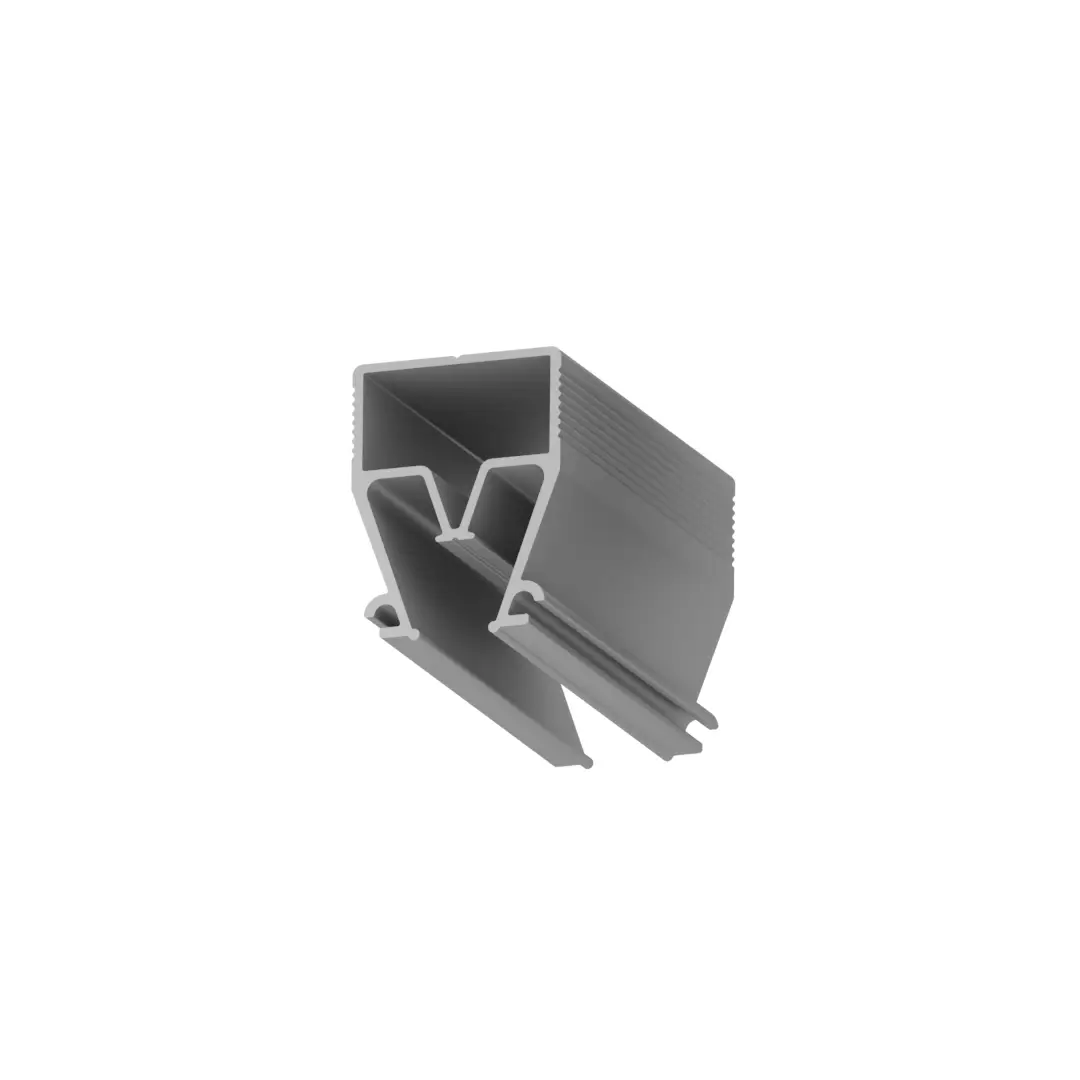

- ✅ Available in three finishes: raw aluminum, black RAL-9005, white RAL-9016

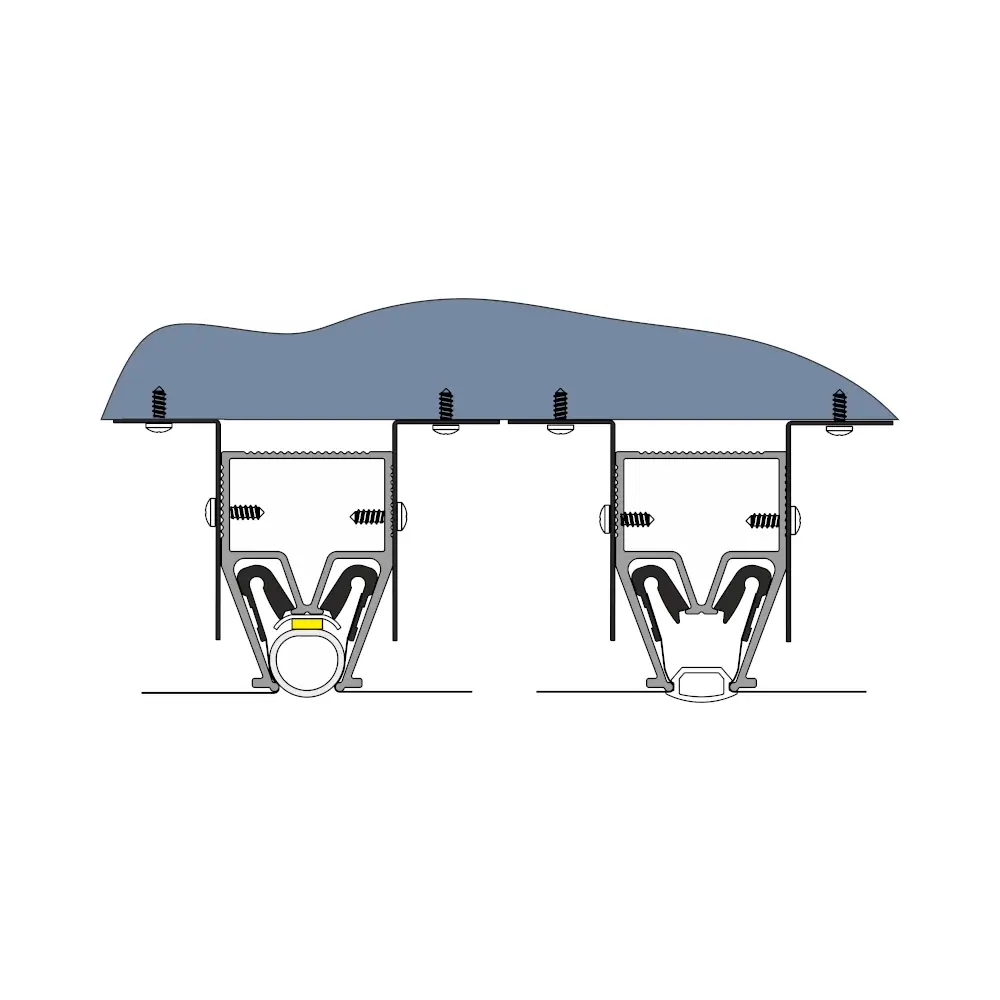

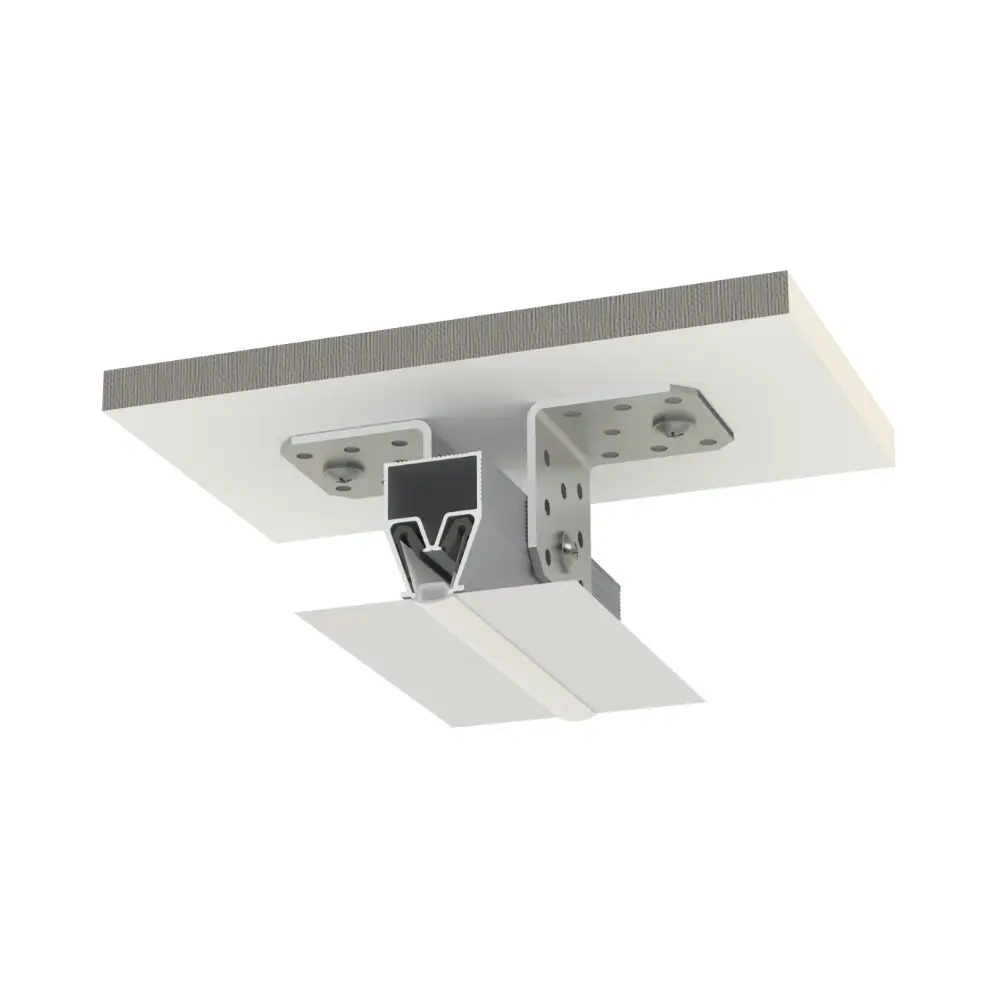

- ✅ Mounted to the base ceiling using steel brackets (profile has no mounting holes)
Diffusers and End Caps
- ✅ Typically, no standard diffuser included (no dedicated DH-G.10 or DF-G.10 available)
- ✅ The flexible TSP.T7 gasket can serve as a visual gap cover
Alternative Profiles in the 10 mm Range
| Colour | black (RAL-9005), unpainted, white (RAL-9016) |
|---|---|
| Theoretical weight per 1 m | 340 gr |
| Mounting holes | No |
| Length | 2 m |
| Mounting method | to the ceiling by means of seat angles |
| LED strip width | 6 mm |
